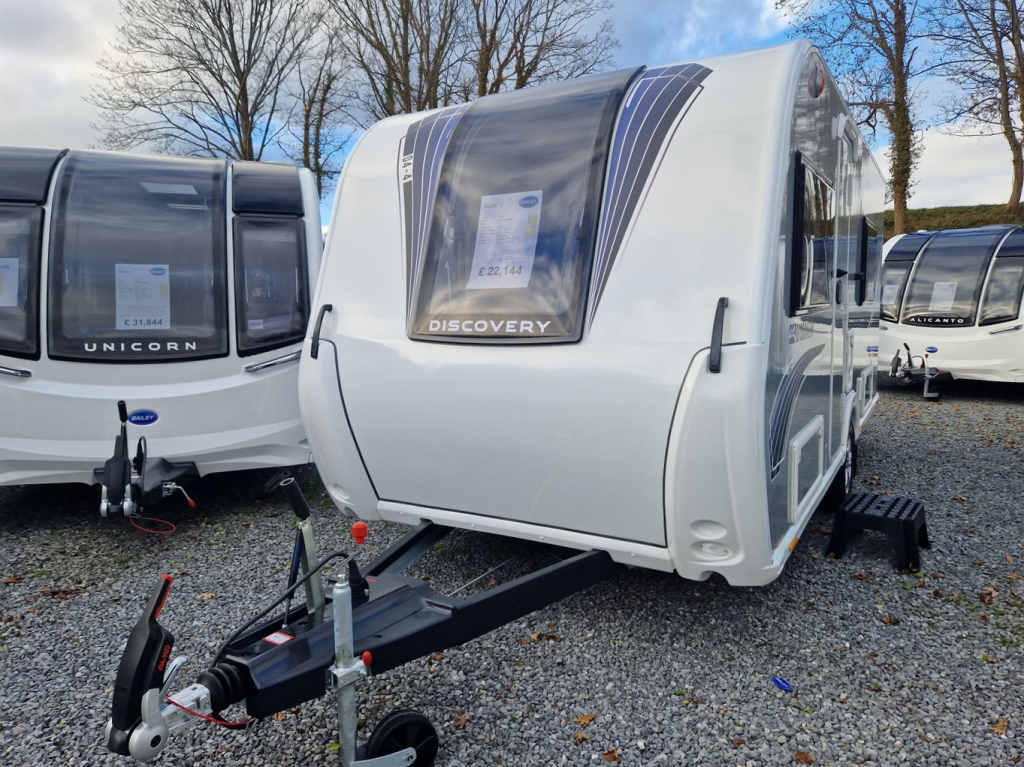

2024 Bailey Discovery D4-4 New Caravan

Now available from our Devon branch Where?

0 Stars - 0 Reviews Review this Caravan Product code: HCCQF143829 In Stock

  • Sale:£19,644OTR
  • Was: £22,144
  • Saving: £ 2,500

Finance & Part Exchange available subject to status.

  1. Specification
  2. Description
  3. Media
  4. Reviews
Every attempt has been made to ensure the accuracy of the information on this page, however it is intended as a general guide only and must not be taken as binding. Please call, to confirm availabilities and details, prior to travelling.

Specification

Specifications
Year2024
ManufacturerBailey
RangeDiscovery
ModelD4-4
AxlesSingle Axle
Berth4
LayoutEnd Washroom, Fixed Side Bed
Tyre Size185/R14C
Awning AA Dimension11.56m (37' 11")
Weights
Every attempt has been made to ensure the accuracy of the weights below, however it is intended as a general guide only and must not be taken as binding. Highbridge Caravans does not accept responsibility for any incident that may occur as a result of the use of this information. It is the responsibility of the driver to ensure they are driving to legal standards within the country they are travelling and under the licence they hold.
MTPLM 1,206Kg (23.74CWT)
MiRO1,059Kg (20.85CWT)
Total User Payload147Kg (2.89CWT)
External Dimensions
External Height2.61m (8' 7")
External Length7.41m (24' 4")
External Width2.23m (7' 4")
Internal Dimensions
Internal Height1.96m (6' 5")
Internal Length5.40m (17' 9")

Description#

Body Shell & Chassis

  • Aerodynamic GRP skinned ‘Polar White’ and ‘Dove Grey’ Alu-Tech bodyshell with wrap around rear profile
  • Floor panel built using a BWP plywood skin, timber frame and a high-density Styrofoam insulation core
  • EN-1645-1 Grade III classification for heating and thermal insulation, for all-year round usage, confirmed by cold chamber testing
  • AL-KO one-piece galvanised steel chassis, braking system, running gear and corner steadies
  • Extended a-frame suitable for optional bike rack (Retailer fit cost option)
  • AL-KO AKS 3004 stabiliser
  • ‘Silver’ 14” TUV tested alloy wheels with premium branded tyres
  • Polyplastic double glazed opening vertical front infinity window
  • Remis pleated blinds and flyscreens throughout the habitation area

Interior

  • Standard ‘Apollo’ soft furnishings with two scatter cushions
  • Conventional sprung cushion construction with fully sprung base cushions and foam filled back rests all featuring premium quality fabrics
  • Slatted front bed make-up system on easy-glide track
  • Freestanding dining table in Bailey ‘Light Oak’ finish with dedicated storage location
  • Dometic 103 litre refrigerator with 12 litre freezer compartment
  • Thetford triplex combination oven, grill with electronic ignition and flame failure device
  • Thetford hob with three gas burners
  • Onboard shower with fitted shower tray, Ecocamel shower head, riser bar and combination mixer tap
  • Belfast style washroom hand basin with mixer tap
  • Thetford 12v electric flush toilet with removable cassette on wheels

     Plumbing, Heating and Electrical

  • Truma Combi 2 heating and hot water system
  • Dual fuel 2.0kw gas and up to 1.8kw electric power sources
  • Digital control panel with adjustable fan and water boost function
  • Provision for 2 x 7kg gas bottles with fitted butane/propane 30mb gas regulator in dedicated locker compartment
  • Pressurised hot and cold freshwater system with Whale high flow self-priming submersible pump
  • Inboard rigid pipe waste plumbing system
  • Electrical control unit with simple controls for heating and hot water systems
  • 230v power inlet for mains hook up with 25 metre mains connecting lead
  • 230v power supply with up to four interior sockets and two USB points
  • Switch mode battery charger with 20amp output
  • 12v internal LED task and ambient lighting system including ceiling mounted down-lighters and directional spotlights
  • Pre-wired for optional motor mover fitment (Retailer fit cost option).
